VPN (Tailscale)

Tailscale creates an encrypted WireGuard mesh network between geographically distributed environments. Subnet routers on each site's networking VM advertise local subnets, enabling cross-site communication over the CGNAT range (100.64.0.0/10).

File Locations

File	Purpose
`ansible/roles/tailscale/tasks/main.yml`	Installation, configuration, and authentication
`ansible/roles/tailscale/defaults/main.yml`	Default variable values
`ansible/roles/tailscale/handlers/main.yml`	Service restart handler

Deployment Modes

Tailscale supports two modes, controlled by tailscale_mode:

Client

Default mode. Joins the Tailscale mesh as a regular node. Accepts routes from subnet routers to reach other sites.

Subnet Router

Advertises local network routes to the mesh. Used on networking VMs to make an entire site reachable from other sites. Enables:

IP forwarding — net.ipv4.ip_forward=1 and net.ipv6.conf.all.forwarding=1 via sysctl
NAT masquerade — iptables rule for 100.64.0.0/10 traffic so Tailscale clients can reach non-Tailscale hosts on the local network
Systemd override — ensures tailscaled starts after the network is online

graph LR
    subgraph WIL["WIL (10.2.0.0/16)"]
        WIL_SR["Subnet Router\n10.2.20.53"]
        WIL_VM["Local VMs"]
    end

    subgraph LDN["LDN (10.3.0.0/16)"]
        LDN_SR["Subnet Router\n10.3.20.53"]
        LDN_VM["Local VMs"]
    end

    WIL_SR <-->|"WireGuard Tunnel\n100.64.0.0/10"| LDN_SR
    WIL_SR --- WIL_VM
    LDN_SR --- LDN_VM
    WIL_VM -.->|"via subnet router"| LDN_VM

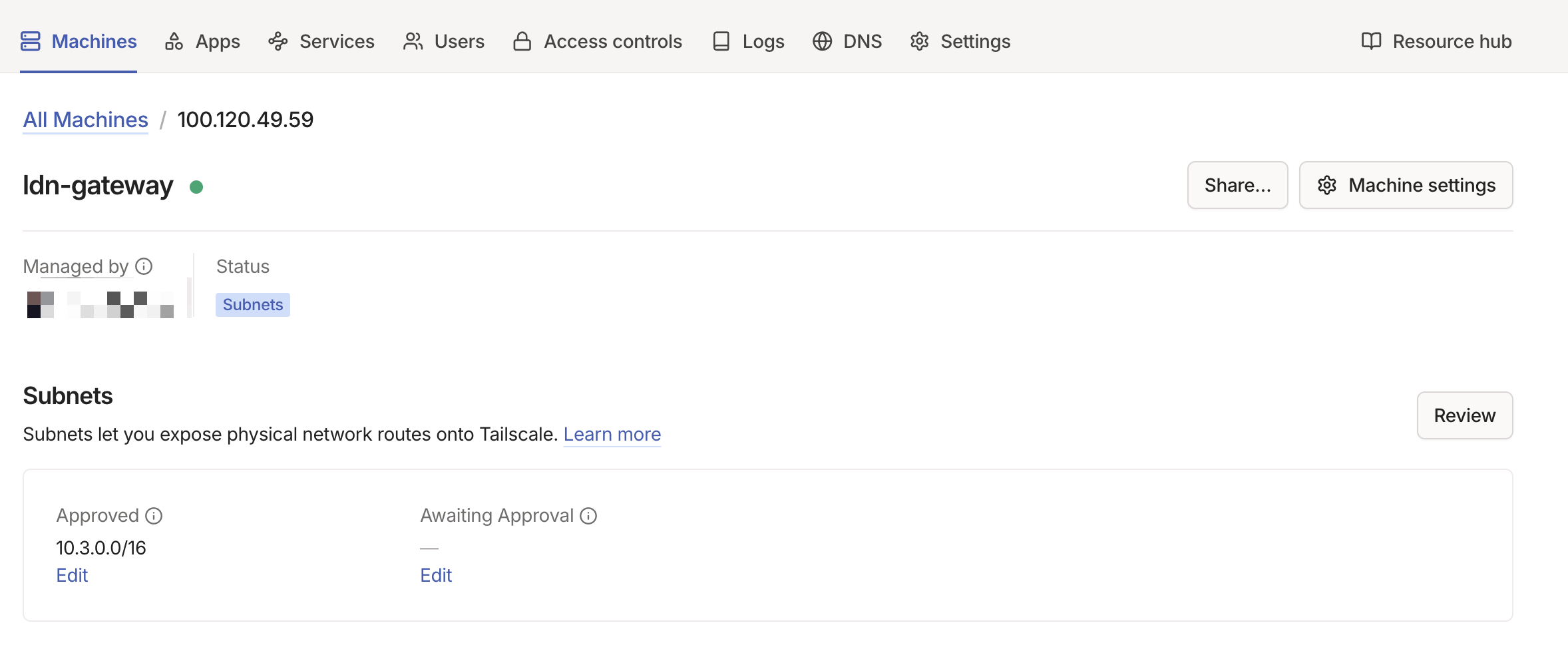

Tailscale subnet router with approved routes

Configuration Reference

All variables are set in the host or group vars for machines running Tailscale. Defaults are defined in ansible/roles/tailscale/defaults/main.yml.

Parameter	Type	Description	Default
`tailscale_mode`	`string`	`"client"` or `"subnet_router"` (advertises routes, enables IP forwarding)	`"client"`
`tailscale_auth_key`	`string`	Auth key from Tailscale admin console (SOPS-encrypted)	`""`
`tailscale_advertise_routes`	`list[string]`	CIDRs to advertise (subnet_router only, requires admin approval)	`[]`
`tailscale_accept_dns`	`boolean`	Accept DNS from Tailscale (disable on BIND9 hosts)	`true`
`tailscale_accept_routes`	`boolean`	Accept routes from other Tailscale nodes	`false`
`tailscale_hostname`	`string`	Hostname in the Tailscale admin console	`"{{ inventory_hostname }}"`
`tailscale_force_reauth`	`boolean`	Force re-authentication on next run	`false`

Cross-Site Connectivity

Tailscale subnet routers enable three critical cross-site functions. For non-Tailscale devices on the local network to use these routes, the UDM Pro must have static routes pointing remote subnets at the Tailscale subnet router VM.

DNS Zone Transfers

WIL and LDN DNS servers replicate zones via AXFR. The BIND9 servers reach each other through Tailscale using their local IPs (e.g., WIL queries LDN at 10.3.20.53), which the subnet routers make routable. See DNS — Cross-Site Zone Transfers.

Service Access

Services on one site can be accessed from the other. For example, a client in LDN can reach plex.5am.video because:

LDN BIND9 has 5am.video as a secondary zone (replicated from WIL)
The A record resolves to WIL's reverse_proxy_ip (10.2.20.53)
Tailscale routes traffic to 10.2.20.53 through the WireGuard tunnel

Trusted Network Configuration

Both sites include the Tailscale CGNAT range in their BIND9 trusted networks:

dns_trusted_networks:
  - 100.64.0.0/10  # Tailscale CGNAT

This allows DNS queries and zone transfers originating from Tailscale IPs.

DNS Integration

Networking VMs run both BIND9 and Tailscale. To prevent Tailscale from overriding the local DNS configuration:

tailscale_accept_dns: false

Without this, Tailscale would push its own DNS servers (MagicDNS), which would conflict with the locally running BIND9 instance.

Split DNS entries in the Tailscale admin console route domain queries to the correct BIND9 server per site:

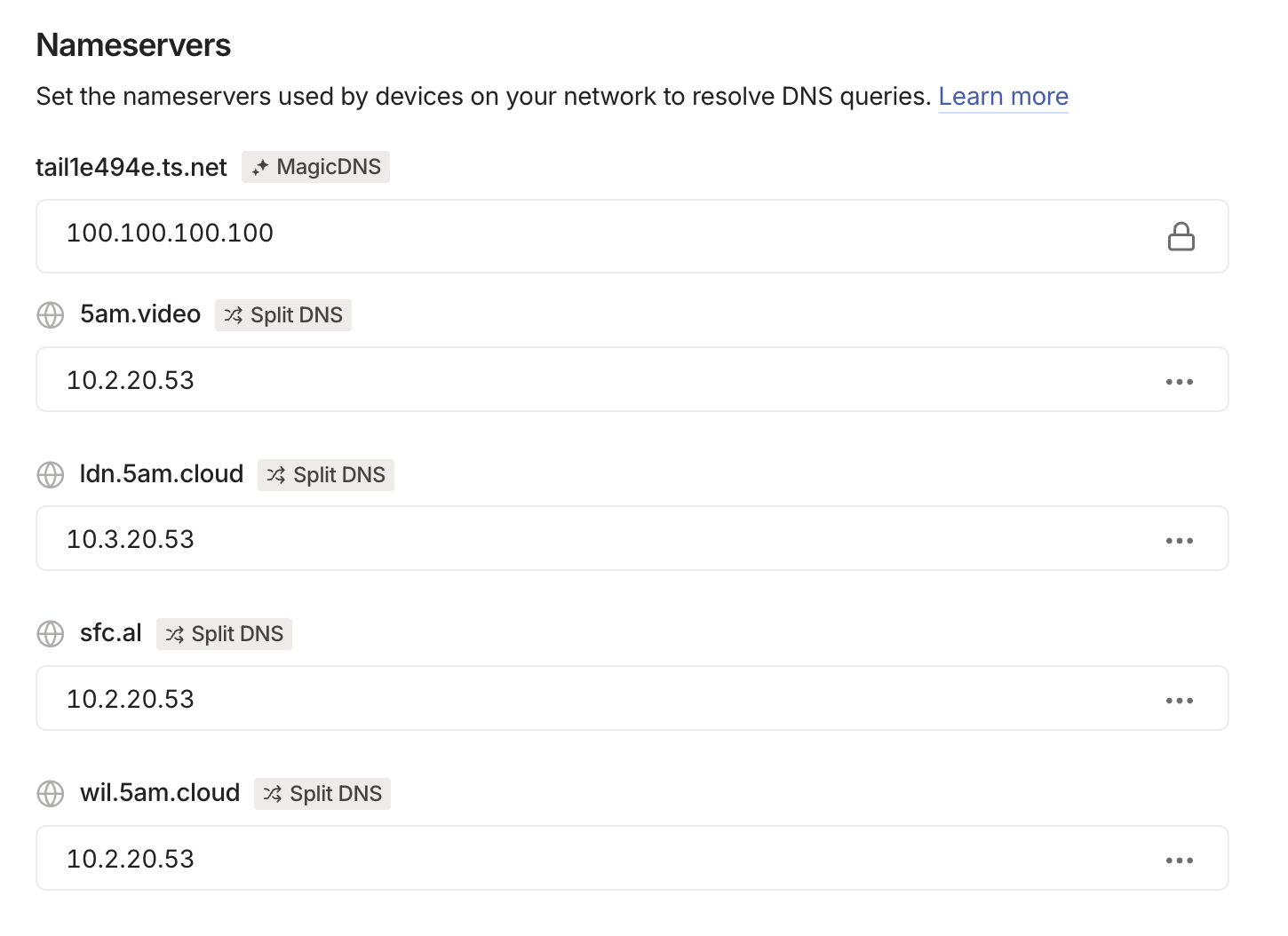

Tailscale nameserver and split DNS configuration

Security

Aspect	Implementation
Encryption	All traffic uses WireGuard encryption (always on)
Authentication	Auth keys stored as SOPS-encrypted secrets
NAT traversal	Coordinated by Tailscale control plane; no public ports needed
IP forwarding	Enabled only on subnet routers, not clients
DNS isolation	Subnet routers disable Tailscale DNS to avoid BIND9 conflicts
Access control	Tailscale ACLs control which nodes can communicate

Common Tasks

Set up a new subnet router

Set the Tailscale variables in the host's group vars:

tailscale_mode: "subnet_router"
tailscale_auth_key: "{{ tailscale_auth_key_secret }}"
tailscale_advertise_routes:
  - "10.2.0.0/16"
tailscale_accept_dns: false
tailscale_accept_routes: true

Deploy:
```
task ansible:deploy-networking ENV=wil
```
Approve the advertised routes in the Tailscale admin console

Add a new site

Set up Tailscale on the new site's networking VM as a subnet router (see above)
On existing sites, ensure tailscale_accept_routes: true so they accept the new site's routes
Add static routes on each site's UDM Pro pointing the new subnet at the local Tailscale VM
Add the new site's subnet to dns_trusted_networks on existing DNS servers
Configure zone transfers between the new site and existing sites (see DNS — Configure zone transfer to a new secondary)
Deploy all affected environments

Force re-authentication

If a node's auth key expires or the node needs to rejoin:

Set tailscale_force_reauth: true in the host's vars
Deploy:
```
task ansible:deploy-networking ENV=wil
```
Reset tailscale_force_reauth: false after successful authentication to avoid re-authing on every future run

Troubleshooting

Cross-site traffic not routing — Verify the subnet router is advertising routes: ssh <networking-ip> tailscale status. Check that routes are approved in the Tailscale admin console. Verify UDM Pro static routes point to the correct next hop.

"login required" on deploy — The auth key has expired. Generate a new one from the Tailscale admin console, update the SOPS-encrypted secret, and redeploy with tailscale_force_reauth: true.

DNS queries failing over Tailscale — Ensure 100.64.0.0/10 is in dns_trusted_networks on the target DNS server. Check that tailscale_accept_dns: false is set on networking VMs to prevent MagicDNS from overriding BIND9.
